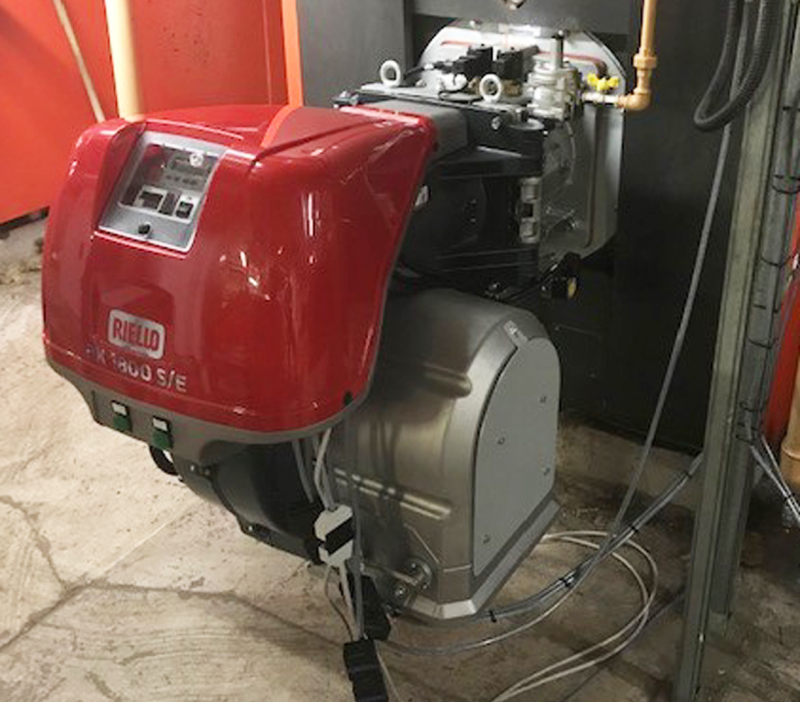

The Riello RX1800 1.8MW premix burners, commissioned by contractor T-Squared, have shown low NOx levels of just 9-10ppm (around 20mg/kWh) throughout the modulation range. This is around half the 40mg/kWh maximum required by some local authorities and also below the Building Research Establishment Environmental Assessment Method (BREEAM) criteria of 24mg/kWh.

Consequently, the burner upgrade enabled the aging cast-iron sectional boilers to comply with current and anticipated NOx regulations, as well as improve energy efficiency – thereby extending the life of the boilers.

T-Squared’s Garry Wallace explained: “The client was very keen to improve energy efficiency and meet future standards for NOx emissions, while retaining the existing boilers for a few more years. We therefore suggested replacing the older burners to achieve better turndown and temperature control with improved efficiency and reduced NOx emissions.

“We considered several manufacturers and selected Riello on the basis of product quality and performance, technical knowledge and customer support. We have also upgraded the metering, which will enable the client to monitor gas consumption and confirm the expected 2-year payback period is being achieved.”

Riello RX premix burners feature a unique design that includes a patented pilot ignition system. The result is a very reliable and compact flame with a diameter directly related to the burner firing rate, ensuring precise heat control and optimum efficiency at all loads. Electronic modulation control ensures efficient performance at all heat loads.
