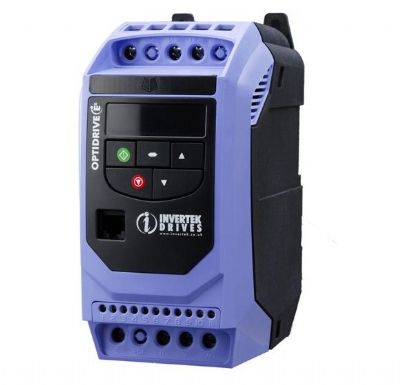

Invertek Drive 0.75kw 3 Phase IP20

Rich in features the Optidrive E2 is the most commercially competitive Optidrive in the Optidrive family. Innovative and compact the Optidrive E2 range combines good looks with robustness, reliability and easy to use performance. The product is dedicated to low power applications where total costs are ultra-competitive, including: Competitive purchase price Low installation costs Low commissioning costs Low technical support costs Optidrive E2 has only 14 standard parameters to adjust in its basic form, thus Optidrive's legendary ease of use could not be easier or quicker to get started with. Optidrive E2 can be supplied with or without an internal rfi filter.
Specification

Output ratings Overload Capacity 150% for 60 secs
175% for 2 secs Frequency 0…500Hz Input Ratings Frequency 48 - 62Hz Voltage 110 - 115 + / - 10% 1 Phase ( 0.5 - 1.5HP)
200 - 240 + / - 10% 1 Phase (0.37 - 4kW / 0.5 - 5HP)
200 - 240 + / - 10% 3 Phase (1.5 - 3.7kW / 2 - 5HP)
380 - 480 + / - 10% 3 Phase (0.75 - 11kW / 1 - 15HP)
Size Length (mm) Width (mm) Depth (mm) Weight (kg) Fixings 1 173 82 123 1.1 4 * M4 Features
  • Small mechanical envelope
  • Rugged industrial 50°C ambient rating for hot and tough applications
  • Simple mechanical & electrical installation
  • Simple operation, powerful features easy to use
  • Fast setup, factory default settings ok for most applications, only 14 basic parameters
  • Motor current and rpm indication
  • Debugging using troubleshooting & P-00
  • 150% overload for 60 secs (175% for 2 secs)
  • Keypad control
  • Integral RFI filter option
  • Integral brake chopper (S2 and S3 only)
  • Modbus RTU serial communications

    Please click on the link to find out more specifications and price
    http://www.ecproducts.co.uk/productdetail.asp?cat=82&item=1&pid=2477
