DM-1200 Battery Powered Differential pressure/air flow gauge

The Series DM-1200 DigiMag® Digital Differential Pressure and Air Flow Gauge is the ideal digital instrument to take the place of analogue mechanical pressure gauges used for pressure or airflow. The DigiMag® Digital Gauges are more versatile than analogue gauges with their ability to be field-programmed to select pressure, air velocity or flow operations. The DigiMag® Digital Differential Pressure Gauges have an added feature for filter applications where a set point can be input. When the filter is dirty, the display will blink alerting the user that the maintenance action needs to occur.





DWYER INSTRUMENTS LIMITED


UNIT 16     THE WYE ESTATE        LONDON ROAD


HIGH WYCOMBE • BUCKINGHAMSHIRE •  HP11 1LH


Phone: (+44) 1494 461707     Fax: (+44) 1494 465102


e-mail: sales@dwyer-inst.co.uk  Web: www.dwyer-inst.co.uk











NEW!

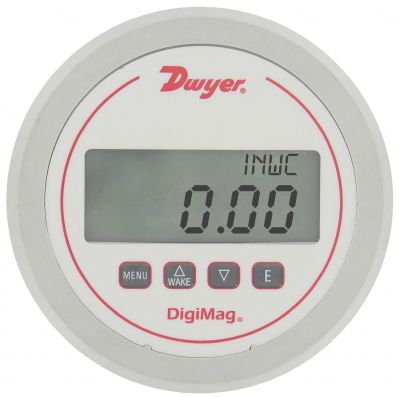

Series DM-1200





Battery Powered Differential Pressure/Air Flow Gauge


























Dwyer Instruments the preferred source for your complete range of practical and affordable instrumentation, is announcing the release of its NEW DigiMag® DIGITAL DIFFERENTIAL PRESSURE AND AIR FLOW GAUGE.


The Series DM-1200 DigiMag® Digital Differential Pressure and Air Flow Gauge is the ideal digital instrument to take the place of analogue mechanical pressure gauges used for pressure or airflow. The DigiMag® Digital Gauges are more versatile than analogue gauges with their ability to be field-programmed to select pressure, air velocity or flow operations. The DigiMag® Digital Differential Pressure Gauges have an added feature for filter applications where a set point can be input. When the filter is dirty, the display will blink alerting the user that the maintenance action needs to occur.


Programming the Series DM-1200 is easy using the menu key to access 4 simplified menus which provide access to: Security level; engineering units; K-factor for use with various Pitot tubes and flow sensors, circular or rectangular duct size for volumetric flow operation; filter set point; view peak and valley process readings; digital damping for smoothing erratic process applications; display update to conserve battery life; zero and span field calibration.


The Series DM-1200 DigiMag® Digital Differential Pressure Air Flow Gauge possesses a full-scale accuracy of 1% on ranges down to 2˝ w.c. and 2% accuracy down to the very low ranges of 1˝ to 0.25˝ w.c. DigiMag® Digital Differential Pressure Gauges offer power versatility by working with 9-24 VDC line power or solely 9V battery power. If using line power and connecting the 9V battery, the battery will act as a back-up if line power is lost or interrupted.


Complete details are available on our website:


 http://www.dwyer-inst.co.uk/Products/Product.cfm?Group_ID=20137





Dwyer Instruments Limited


Unit 16, The Wye Estate


London Road, High Wycombe


Bucks, HP11 1LH


Phone: 01494 461707


Fax:      01494 465102


Website: http://www.dwyer-inst.co.uk


E-mail: sales@dwyer-inst.co.uk
04 November 2010
